[TR] MT1106II-3800KV 초소형 브러쉬리스 모터 정방향+역방향 (120~150급 드론 / 5도 캔딩)

MT1106II Micro Motor for 120~150 drone, CW / CCW · 1106 3800kV CW, CCW겸용 120~150급 프레임 사용 기본 5도 캔딩
제품코드 : TL150M3
상품번호 : QQ10703
판매가격 : 22,800원
상품번호 : QQ10703
※문의시 상품번호를 알려주세요
네이버페이 적립 : 구매 금액 4%
최대 7개까지 주문 가능내일 출고
물류창고 7개
오늘 15:30 까지 결제하시면 내일 9월 29일(화) 출고됩니다.
주문수량 / 최대 7개
위에서 옵션을 선택하세요.
바로구매
장바구니
카톡상담

장바구니에 담았습니다.
지금 확인하시겠습니까?
장바구니 보기   계속 쇼핑하기
이미지 상품명 선택
추가 옵션상품 총합계: 0원
옵션 상품을 포함하여 장바구니 담기 >

제품 사양
KV
3,800KV
입력 전압
2~3S
캔 규격
14 x 12.5mm

[TR] MT1106-3800KV Micro Motor for 120~150 Racing(CW/CCW/5Deg' Canding)


타롯사의 수퍼 마이크로 120~150급 레이싱 쿼드용 브러시리스 모터.


스페어용 프롭은 Dualsky사의 3020 Prop을 사용하시면 됩니다.


본 제품은 5도 경사각을 가진 캔딩 모터 입니다.



Tarot MT1106-3800K brushless motor suitable for 120/130 and other multi-axis machine through the high-end configuration, the proposed four-axis flight control weight of 180 g (single pull up to 120 grams).


MT1104 brushless motor extremely low center of gravity, using 0.20mm ultra-thin high-efficiency silicon steel (primary propeller shaft folder structure) so that it can get the best concentricity guaranteed.


A highly efficient bulk active pad designed to achieve lower operating temperature means higher productivity.


MT2204 brushless motor with excellent balancing performance, base mounting holes motor 9MM, compatible with mainstream rack-mount on the market today, retain the appearance and consistency of conventional motor, high

floating coil protection.






- Number of battery sections support: 2~3S

- Installation paddle diameter: 5MM

- Propeller: two 3-inch blade turbine TL150S1 / TL150S2

- Stator diameter: 11MM

- Stator end thickness: 4.0

- Stator end: 9

- Motor poles: 12

- Speed: 4000KV ± 5%

- Outside motor diameter: 14MM

- Axial Diameter: 1.5MM

- Motor height: 17.5MM

- Motor Weight: 5.3G





- MT1106 brushless motor (Φ14 × 12.5mm) × 1

- M2 × 6MM round head sleeve screws × 2

- Within M2 × 4MM cup head Hexagon Screws × 2

- Two 3-inch blade turbine / couple

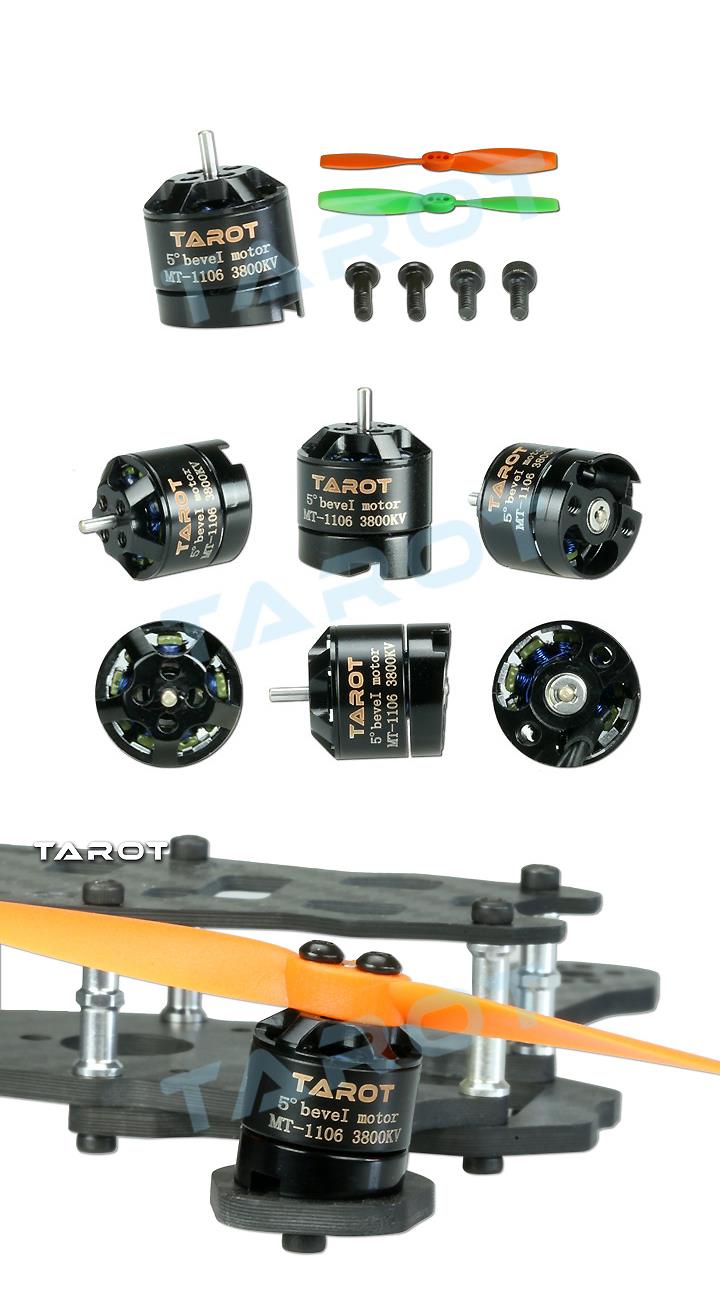

<제품 이미지>


프롭은 정피치, 역피치 각 1개씩 포함되어 있습니다.
