* 유럽연합(EU) 의 포장재 규제안(PPWR)에 따라 2024년 06월 이후 수입된 제품은 제품 패키지가 위와 같은 박스로 변경되었습니다.
H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro. This system provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and fast update rate for highly dynamic and high volume applications with centimeter-accuracy. It uses a UBLOX F9P module, a IST8310 compass, and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation.
PX4 Autopilot users:
The GPS RGB LED Driver Chip has been updated. Ensure the PX4 firmware is Stable Release v1.12.2 or newer for proper LED driver Support.
Ardupilot User:
If unable to preform normal compass calibration "compass dance" for any reason, set parameter COMPASS_ORIENT=6 (Yaw270) for proper compass orientation.
This model uses a helical antenna, which has better performance than the lite version. This model can be used both on rover (aircraft) or as base station.
The aluminum alloy shell design also has a integrated safety switch and a tri-colored LED indicator, and it is compatible with the open source Pixhawk series flight controller.
![[알씨뱅크] 12018 [Holybro] H-RTK F9P 헬리컬](/shop/data/goods/1653361164840l0.jpg)
![[알씨뱅크] 12018 [Holybro] H-RTK F9P 헬리컬 1](https://shop.rcbank.co.kr/shop/data/editor/5de7b122418b2f4a.jpg)
![[알씨뱅크] 12018 [Holybro] H-RTK F9P 헬리컬 2](/shop/data/editor/c4a2ae33b6709e8c.jpg)
![[알씨뱅크] 12018 [Holybro] H-RTK F9P 헬리컬 3](/shop/data/editor/6717f5600538e094.jpg)
![[알씨뱅크] 12018 [Holybro] H-RTK F9P 헬리컬 4](/shop/data/editor/ffd99abe642b03ac.jpg)
![[알씨뱅크] 12018 [Holybro] H-RTK F9P 헬리컬 5](/shop/data/editor/163e237dac216477.jpg)

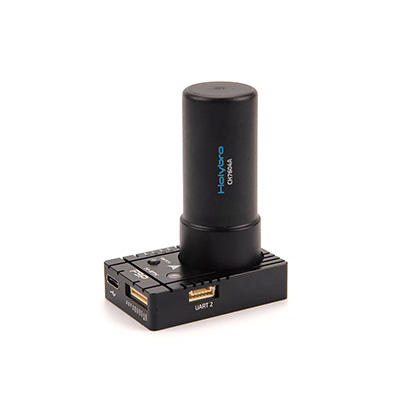

![[알씨뱅크] 12018 [Holybro] H-RTK F9P 헬리컬 6](https://shop.rcbank.co.kr/shop/data/editor/e73a43384c3a18e9.jpg)
